產品簡介

1、專為圓形、橢圓形、三角形、四方形、六邊形、人邊形及異形產品實行一次完成印刷而設計，機構簡單合理、調試方便快捷、

運行穩定可靠。

2、整機集成同步自動上料、全伺服驅動X、Y、Z軸印刷及紫外線固化、也可以選配CCD檢測產品等多種功能，大大提高了調試、印刷、

檢測的效率，從而填補了目前市場急需的高效率多功能全自動絲印機。

3、通過觸摸屏操作輕松實現人機對話，使操作更加得心應手。

4、伺服驅動取代了市場上氣動及機械聯動的復雜性，使印刷產品更高效更精準。

5、通過電子傳感器實現“無件不印”、“氣壓過低”“套色不準”等自動檢測功能。

6、機器選用的電機、電氣元件及控制系統均采用意大利、德國、日本，確保了整機的品質。

7、可以選裝以下升級版高配置（價格需另購）：

●全自動理料及上料系統（可節省大量人工，實現全面自動化）；

●美國SIMCO離子風除塵裝置（減少生產環境不確定因素）；

●意大利產廢品檢測CCD裝置（減去大量人工通過眼睛目測）；

●可加裝絲印、燙金、轉印等裝置（更加適合市場多元化的需求）；

8、可根據客戶對自身產品的特殊要求，專門設計并量身定做個性化設備。

Introduction

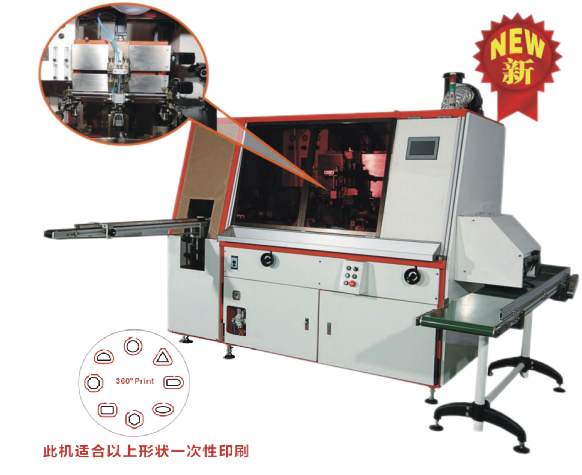

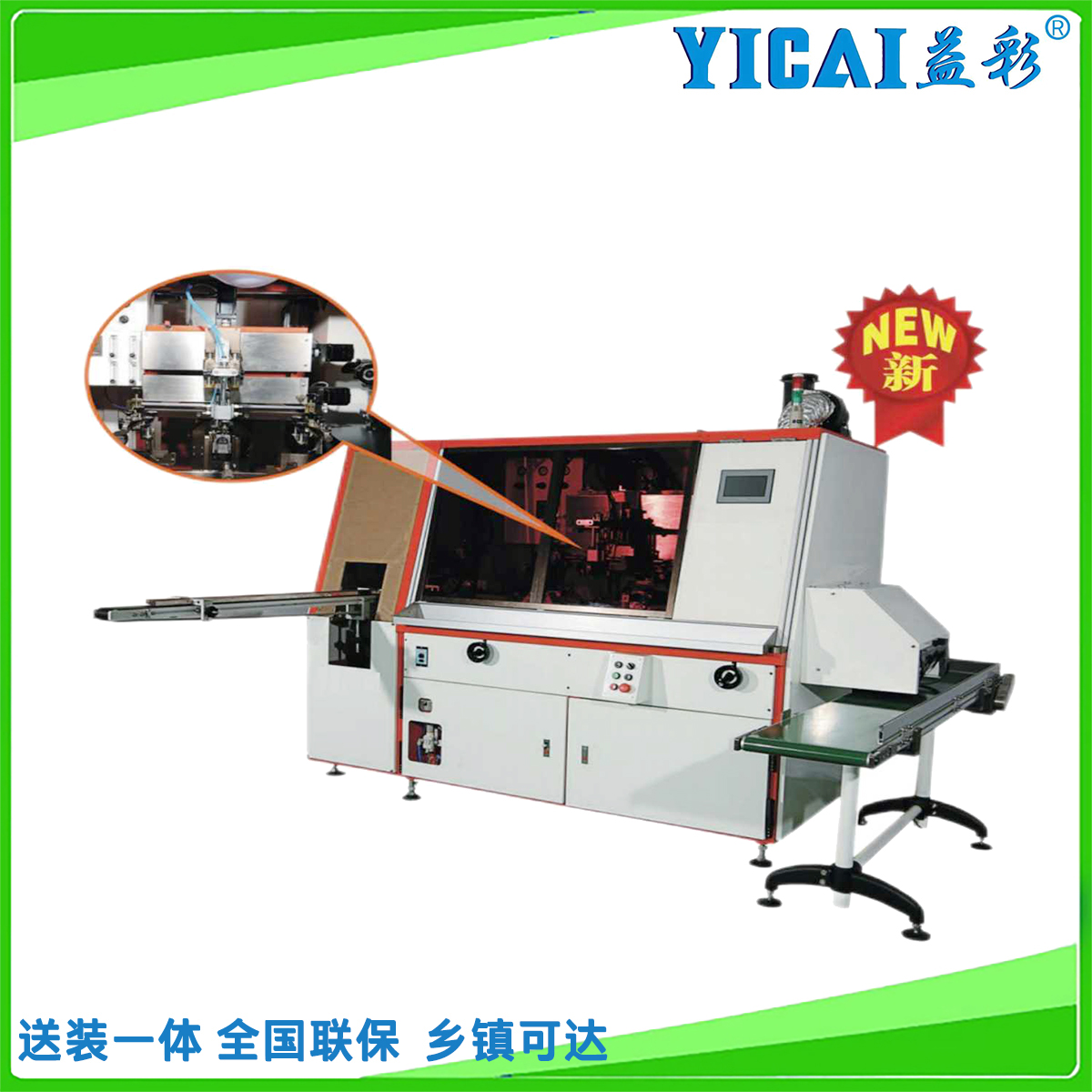

1.YC-787 designed or decorate round, oval, triangle, square, hexagon, octagon and special shaped containers by one time.

2.All servo driven X,Y,Z axis printing and UV curing,also available install CCD system to detect reject product and

other functions, highly improve efficiency of set up,printing,detection process.

3. World famous PLC and touch screen controlled for well operation.

4. Servo driven instead of current complicate pneumatic and mechanical driven for top efficiency and top precision.

5. Auto detective function for "No Print Without Part","Low Air Pressure Alarm" and "Inaccuracy Registration" etc.

6. Control system, motor, electronic components original from Italy, Germany, Japan etc.

7.Optional for more automation:

● Bowl feeder with auto infeed system (Save labor cost);

● Optical re-registration sersor (Re-registration printing);

● USA SIMCO anti-static device (Cleaning and neutralizing object surface);

● Italy CCD system for reject products (More efficiency finished products);

● Available install hot stamping and heat transfer system (Satisfy different requirements);

8.Design and customize machines according to your special printing needs.
